Assembly machine APM1000-MK1
Automated IGBT Assembly
- Robust, fast, flexible and precise
- Full automatic assembly equipment
- Solder Preforms cutting and placement from a solder ribbon
- Assembly operation : Pick & Place ; JIG Pick & Place ; DBC Pick & Place ; NTC thermistor Pick & Place
Download datasheet
: Assembly machine APM1000-MK1

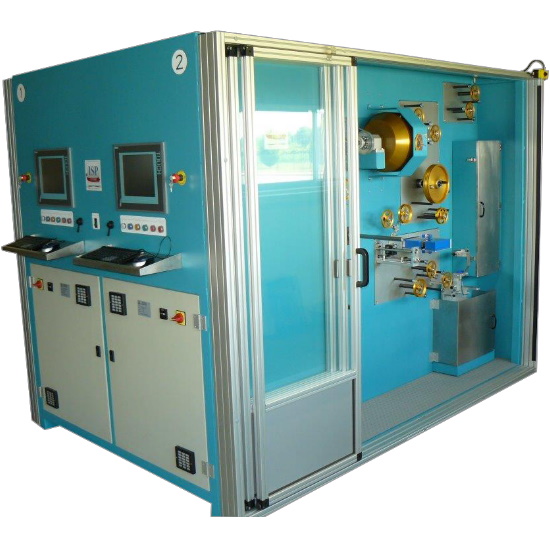

Optical fiber packaging
Winding machine
- Several type of coils : offsets, inversion angle, starting, accelaration and slowdoxn position
- Winding speed: 0 to 100 m/min
- Winding with straight or crossed turns
- Fiber tension per dancer: 25 to 250g
- Horizontal slicing with precision guide and linear motor (displacement precision 2μm)
Download datasheet
: Optical fiber packaging

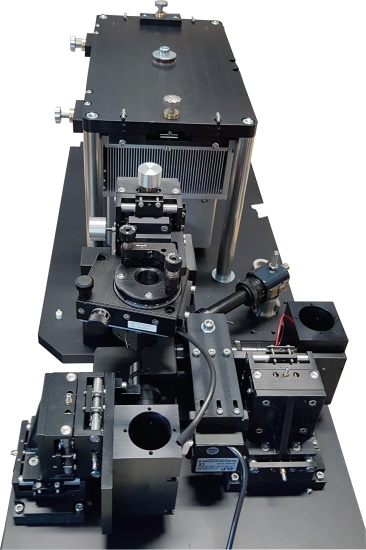

Cytometry laser module
Optical fluorescence measurement of cells
- DNA characterization in reproduction cells
- UV laser source with 5 adjustement DDL
- XYZ fine translation for front and side beam alignment
Download datasheet
: Cytometry laser module

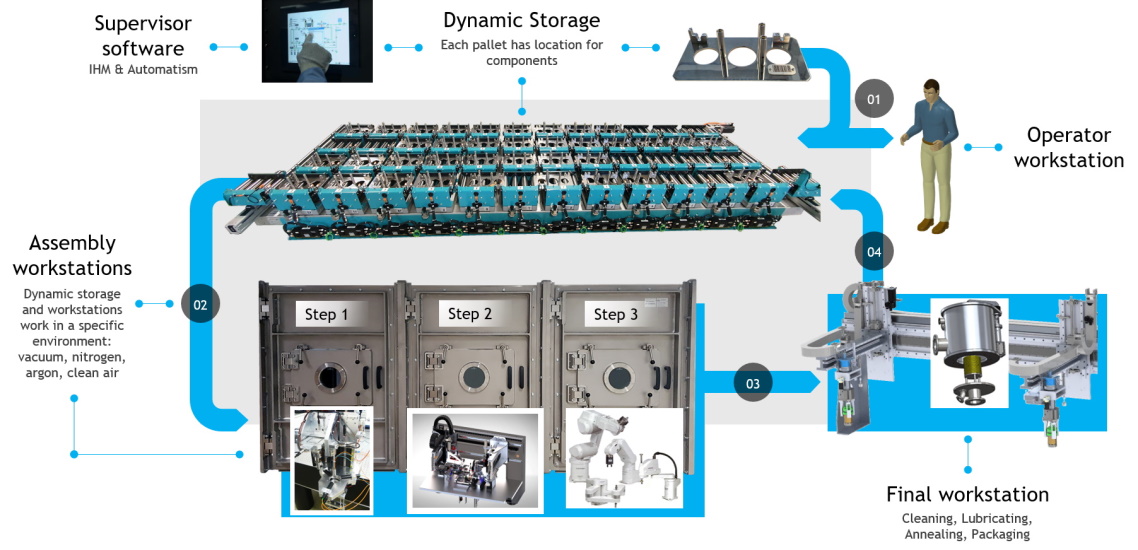

Vacuum assembly process
Assembly in controlled atmospheres
- Dynamic stock with 8 hours of autonomy
- Assembly under vacuum or argon
- Embedded metrology
- Induction oven
Download datasheet
: Vacuum assembly process

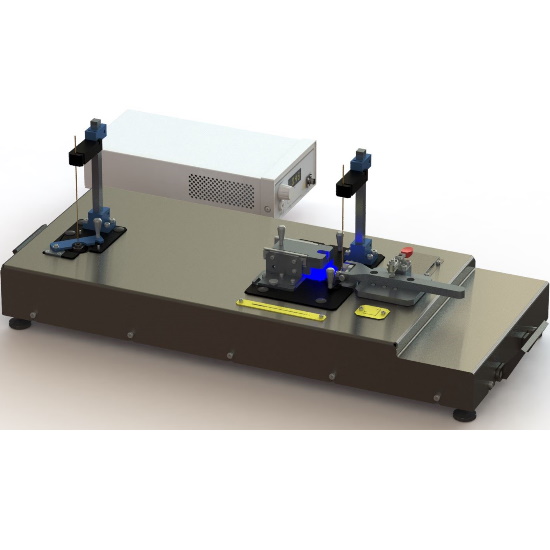

Optical connector assembly
Active optical fiber alignment
- Active alignment of optical fiber to a ferrule/lens/connector
- Fiber optic bonding by UV diodes
- Real-time measurement: during alignment and before, during and after bonding
- Axes stroke: ± 2.5 mm
- UV diodes: 1,400 mW/cm² @ 365nm
Download datasheet
: Optical connector assembly
Fiber optic wrapper
Winding machine
- Protection of the fiber by a Kevlar type textile
- Fiber reinforcement
- Photonics and Defense markets
Download datasheet
: Fiber optic wrapper
PHOTOMATIQ Laser PHQ-1000
Laser assembly machine
Download datasheet
: PHOTOMATIQ Laser PHQ-1000

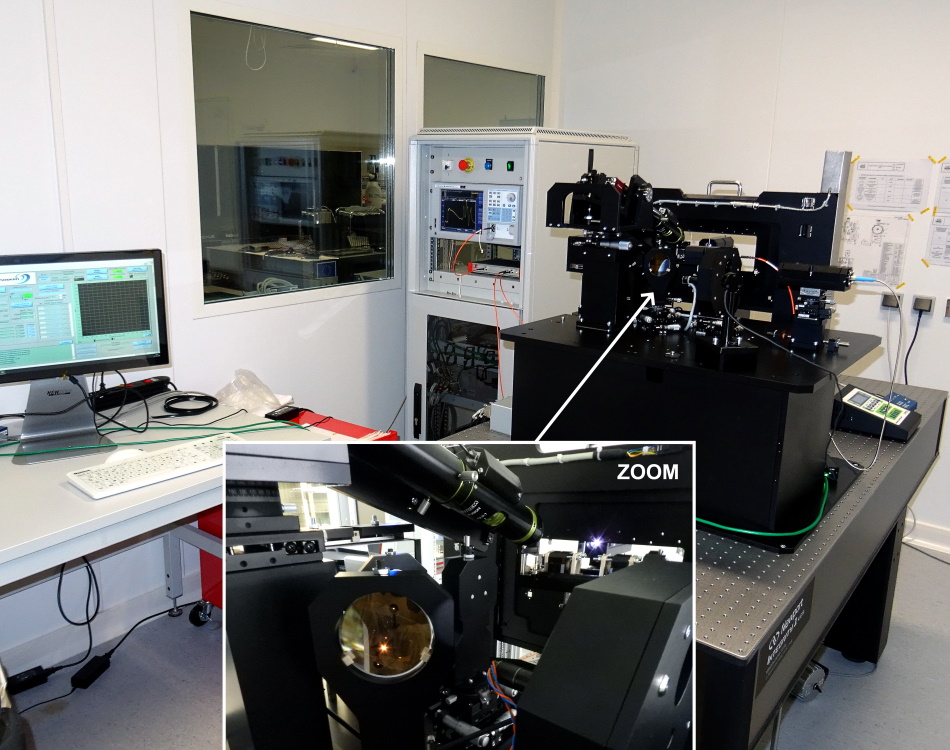

Spectral bench
Characterization of spatial filters
- Accuracy of flux measurements: ± 0.5% in transmission and reflection
- Incidence angle of the transmission measurement: from 0° to 30°
- Incidence angle of the measurement in reflection: 5 °
- Wavelengths measured: from 350nm to 1100nm
- Equipped with 6 diaphragms
- Max size measurable components: 200mm x 200mm
Download datasheet
: Spectral bench
Laser selective soldering – DLS
Assembly machine
- Assembly by laser soldering of chips on leadframe
- High precision: submicron resolution
- High rate: 12s per solder (variable depending on soldering time)
- Component positioning determined after vision measurement
- Equipped with an electromagnetic head (ISP SYSTEM patent), effort during welding and movement controlled
Download datasheet
: Laser selective soldering – DLS

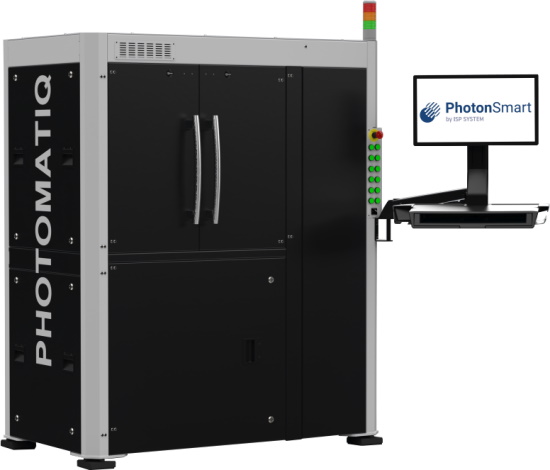

PHOTOMATIQ
Photonics packaging machine
- Automatic production of optical packages
- Automatic dispensing of adhesive materials.
- Active alignment process
- Submicron resolution
Download datasheet
: PHOTOMATIQ
Glue dispensing die bonding DBS
Micro-assembly machine
- Assembly machine by bonding chips from 2.5 × 2.5mm² to 10x10mm²
- Designed for large series
- Assembly rate: 6s per piece
Download datasheet
: Glue dispensing die bonding DBS
Laser sintering machine : ILAS
Micro-assembly machine
- Flexible generic machine
- Refined laser process parameters: guarantees industrialization of a successful laser process
- HMI: Programming, process monitoring and post-processing analysis
- Equipped with an electromagnetic head (ISP SYSTEM patent)
- Controlled laser beam and beam power modulated throughout the assembly process
Download datasheet
: Laser sintering machine : ILAS
Large cartesian robot
Precision positioning and assembly
- High speeds and accelerations
- Closed loop positioning on absolute measurement rule
- Friction limited to guide rails and pads only
- Lack of wear and grip
- Minimum maintenance
- Suitable for clean rooms
Download datasheet
: Large cartesian robot
Compact cartesian robot
Servo positioning by linear motors
- High precision guidance
- Linear motors
- Same repository (granite) for all axes
- Granite base decoupled from the exterior structure
- Rigid and light manipulator structures
Download datasheet
: Compact cartesian robot

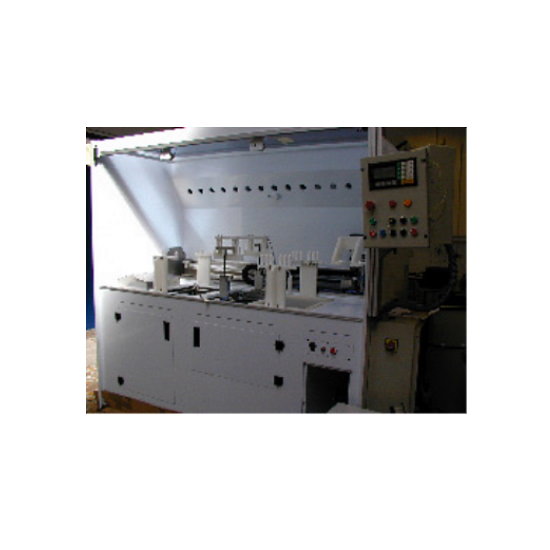

Fiber optic thinning
Automatic machine
- Equipped with a manipulator robot: immerses the fibers in different baths
- Controlled fiber thinning by chemical attack
- Machine integrated in a "wet bench”
Download datasheet
: Fiber optic thinning
Oxalate laser sintering machine
Die Bonder micro-assembly machine
- Oxalate dispenser, pick & place and laser sintering
- Small series production
- Assembly of electronic components at low pressure and temperature
- Optimal sintering quality: no voids> 50μm
- Process analysis and post treatment functionality
- Compatible with space applications
Download datasheet
: Oxalate laser sintering machine

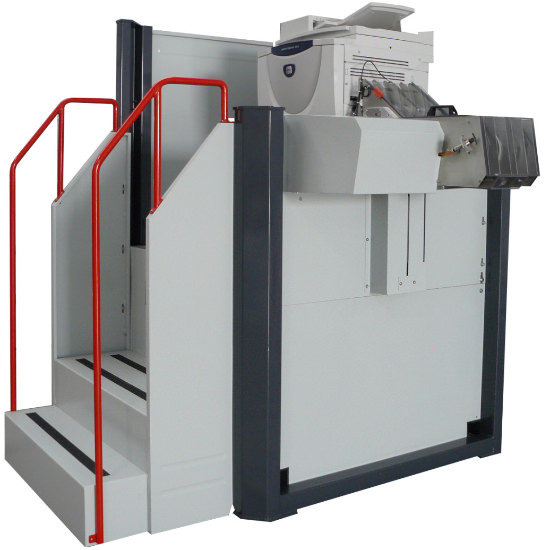

Automatic note dispenser
Warehouse automation system
- Quick delivery of delivery slips in the boxes of goods on the picking chains
- High productivity: 4 integrated and desynchronized storage troughs for continuous printing
- Distribution of documents on variable height boxes
- Adaptable to all types of photocopiers
- Maximum removal rate: 45 sheets / minute
Download datasheet
: Automatic note dispenser

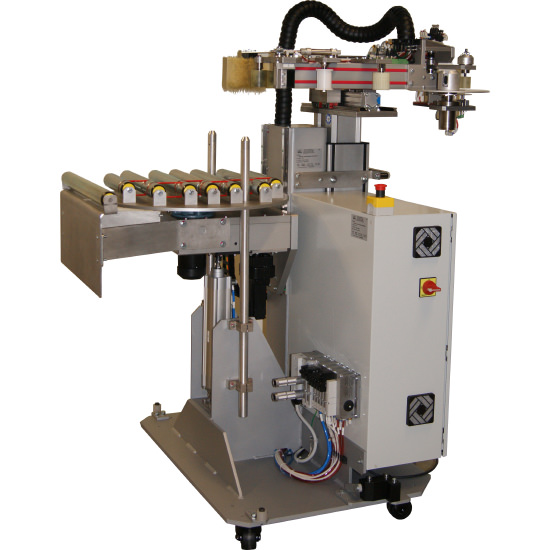

Automatic adhesive removal machine
- Automatic removal of advertising adhesive with customer logo on a cylindrical product.
- Ensures automatic transfer between two conveyors
- Compact machine
Download datasheet
: Automatic adhesive removal machine

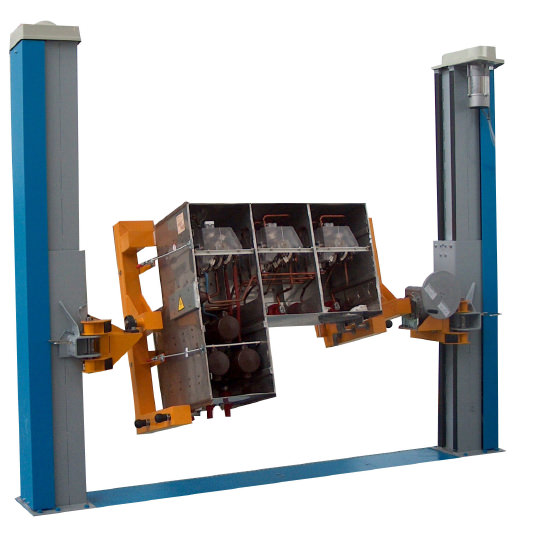

Tank handling station
- Installation of electrical cabinet
- Facilitate the assembly of the tank by relieving the mass
- At breast height, access to the front, rear, side, upper and lower sides of the tank
- Maximum height: 2705 mm
- Maximum load that can be handled: 380 Kg

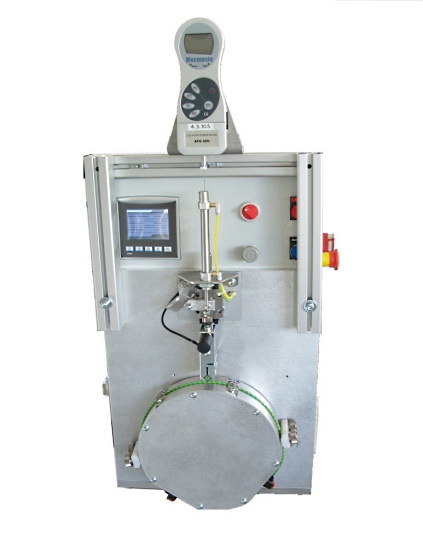

Cable scraping bench
Banc scraping test
- Sheathing test of electric cables subjected to a friction force
- Force value from 1 to 50N
- Configurable by HMI control
- Tool in treated steel (60 HRC)
Download datasheet
: Cable scraping bench

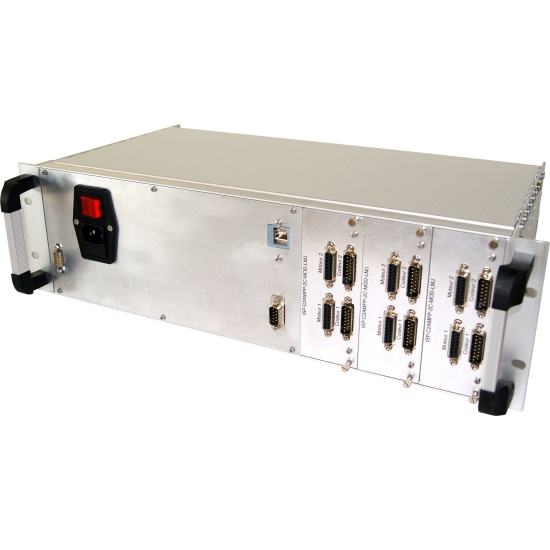

Hybrid ethernet driving bench
Stepper motor control
- Qualify pilot racks for actuators with hybrid stepper motors independently
- Test different locally controllable HMIs based on a PC
- Ethernet to CAN gateway
- Bench generating incremental or absolute encoders of high precision: Renishaw, Heidenheim…
Electric motor torque bench
- Torque tests developed by electric motors
- Check the torque produced by the motors tested and set up complex servo drives
- Equipped with a MAGTROL hysteresis brake: resistive torque adjustable from 0 to 13Nm
- Equipped with 6 anti-vibration feet

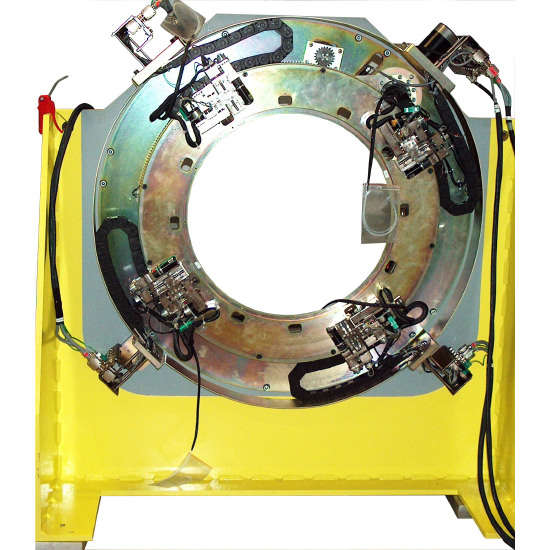

Turbine test bench
- Turbine air flow (temperature and pressure) analysis
- Equipped with a turret supporting 4 actuators arranged at 90 °
- Actuator: translational and rotational movement
- Delivered with a control bay for axis cards & programming software
- Turret rotation accuracy: ± 0.05mm

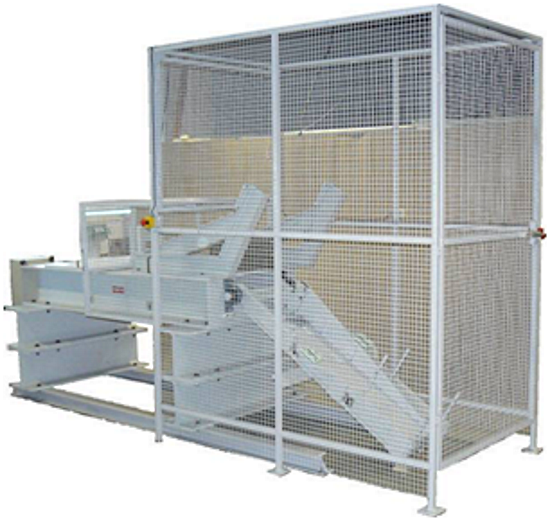

AR ramp actuator test bench
Dedicated to armored vehicles
- Functioning and endurance test for armored vehicle rear ramp motorization assemblies
- Simulate the torque required to open and close a rear ramp of a military vehicle: weight of the ramp 200 to 500kg
- Static test: addition of mass on the ramp (up to 300 kg)
- Operating temperature: -30°C to +50°C

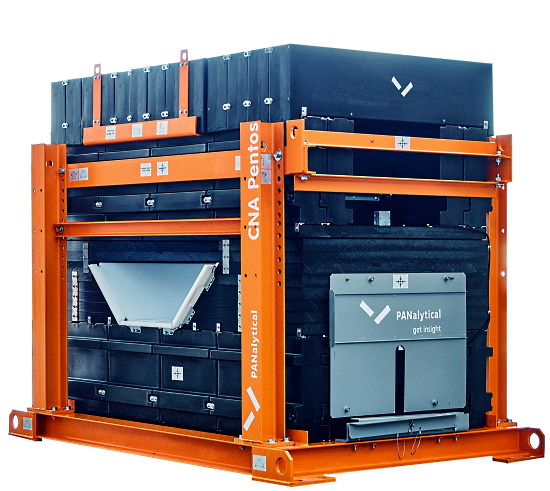

Neutron shielding
CNA
- Neutron emission shielding
- Material analysis directly on the conveyor belt
- Stable structure
- Box with variable shapes and dimensions according to customer needs
- Filling: mixture of High Density Polyethylene tablets bonded with paraffin

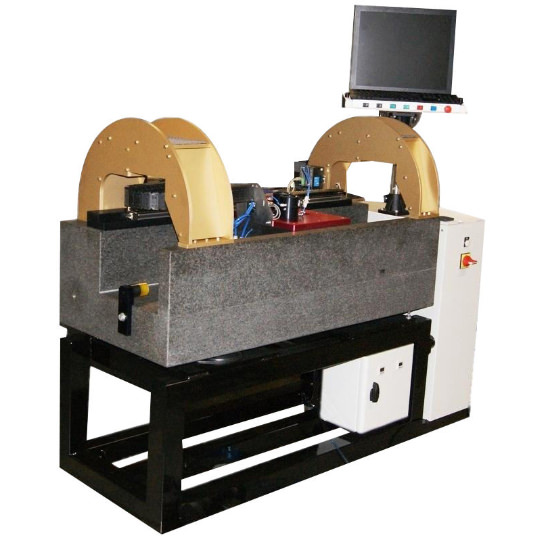

Micrometric alignment robot
Continuous analysis of positions by vision
- Realizes the precise placement (2µm) of objects between them in the horizontal and vertical planes
- Continuous analysis of positions by vision
- Position deviation given in real time
- Recalibration of measuring equipment integrated into the machine
- Displacement resolution: 0.1µm
Download datasheet
: Micrometric alignment robot
Automatic ostomy bag assembly machine
High productivity automatic process
- Assembles medical interfaces for ostomy bags
- High productivity: automatic parts replenishment store in cycle
- Rate: 6s
- Several operations carried out: Corona treatment, assembly of components, high resolution printing
Download datasheet
: Automatic ostomy bag assembly machine

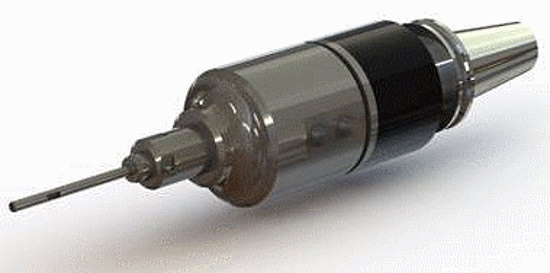

Automatic bore
HSID 25 series
- Automatic control of cylindrical shapes
- Accepts radial and axial misalignments
- Micrometric and sub-micrometric resolution
- Design for precision measurement in harsh environments
- Diameter inspected up to 25mm
- Depth inspected up to 100 mm
Download datasheet
: Automatic bore

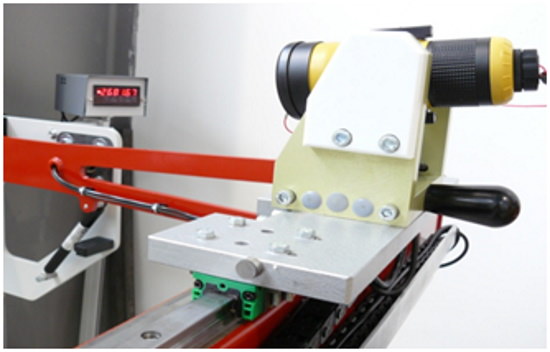

TGV axle track measurement
Check the wheel center distances of the train axles
- Check the track of the train axles after assembly
- Composed of optical scope (theodolite)
- Translation controlled by a measurement rule
- Measuring accuracy over a 3.3m stroke: ± 0.05mm
Download datasheet
: TGV axle track measurement

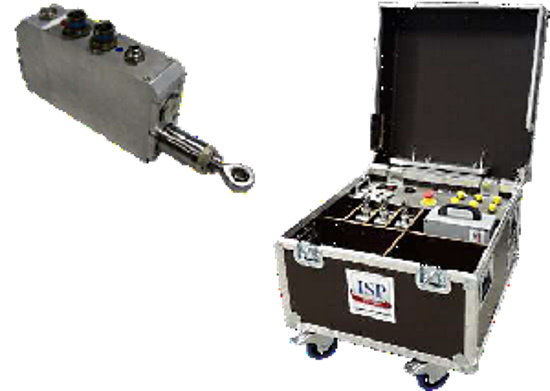

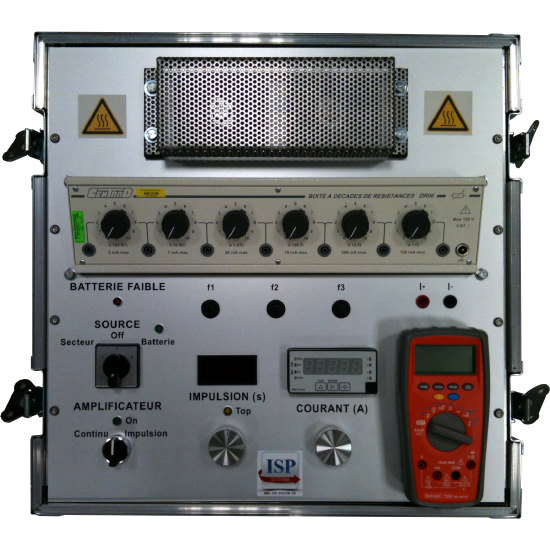

Calibration case for railway engine
Consisting of a current transformer
- Used during train maintenance: rail sensor calibration consisting of a current transformer
- Current: 0 to 5 effective ± 10mA
- Frequency: 100 Hz ± 0.5 Hz
- Sinusoidal or pulse mode (0 to 2 seconds ± 10ms)
- Sector: 230 VAC 50Hz
- Battery: 12V 24 Ah (2h autonomy, built-in charger)
Download datasheet
: Calibration case for railway engine
Measuring and adjustment tools

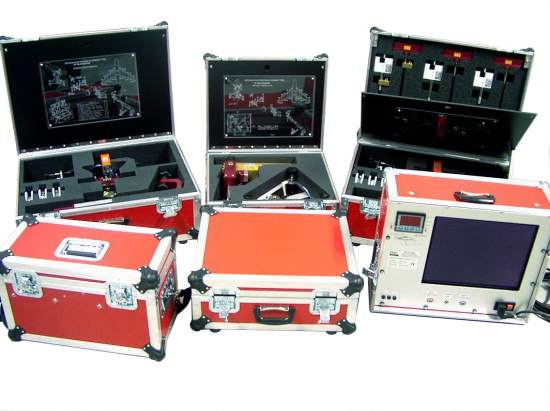

Structure alignment by video telescope
- Mechanical measurement and adjustment of large, inaccessible devices: high precision
- Analysis of the methodology applied to metrology
- Calculation of measurement uncertainties included in the study of the requirement
- Accuracy for aiming at 13m : ± 0.25mm
Download datasheet
: Measuring and adjustment tools

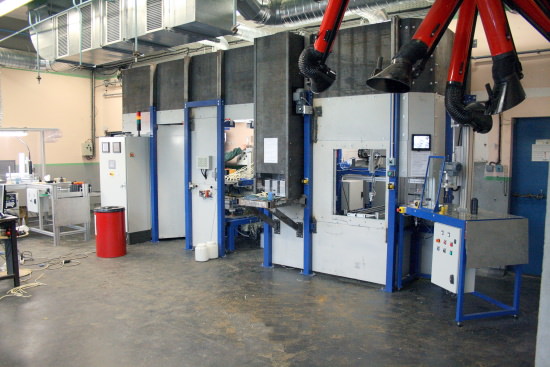

Propellant charge assembly line
Defense production process
- Design and production of automated production lines. Example: propellant charge assembly line
- Sizing studied according to the cadence
- Security, reliability and capability studies
- PLC type automation in CAN OPEN network
- Supervision, acquisition of manufacturing data and traceability
- HMI on touch screen

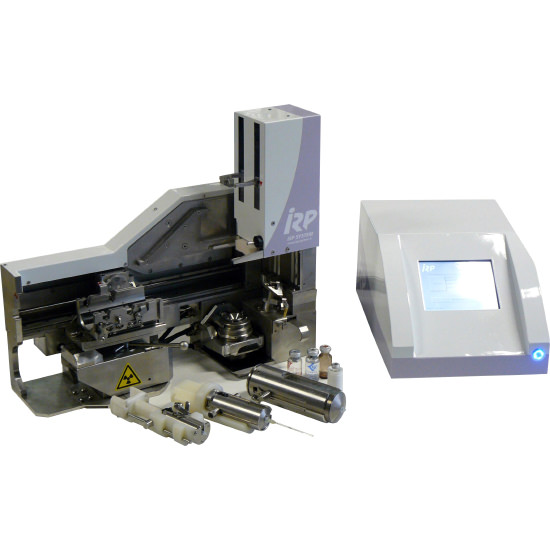

Radio Protected Injector
Reduces exposure of healthcare staff to ionizing radiation
- Equipment to reduce the exposure of nursing staff to ionizing radiation
- Radiation protection property allowing coverage of a broad emission spectrum
- Use of syringes: 1ml, 10ml and 50ml with luer lock tip
- Armored sleeves
- Supplied with cart: 20 mm lead enclosure shield, integrated syringe pump, various integrated supports
Download datasheet
: Radio Protected Injector
SCARA robotic machine
Removal of electronic chips and laser soldering
- Robotic machines for depositing electronic chips and laser soldering
- Robot (6 axes) for palletizing ceramic pieces at the press outlet
Download datasheet
: SCARA robotic machine
Air bag handling tools
Air vents of the F7X
- Maintain the complete or semi-ducted lines of the S1, S2 and S3 segments of the F7X air socks in suspension
- Relieve the weight of the product: a single operator for welding
- Automatically ensures the normality of the profile (perpendicularity of the product) at the weld points
- Mass of manipulable segments: 5 to 15 Kg

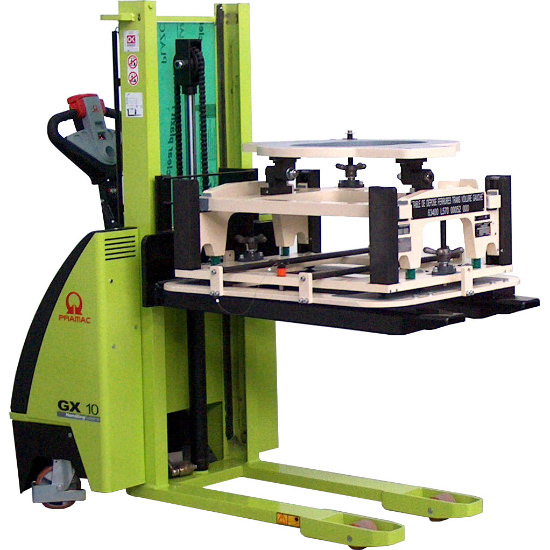

Hardware removal table
Trans Sail
- Tool allowing to take back 4 types of fittings
- Motorized Z approach ascent: stroke of 1370mm maximum
- Final manual ascent: 60mm stroke
- 3 rotations: X, Y Z (± 2 °)
- Payload: 1000 Kg

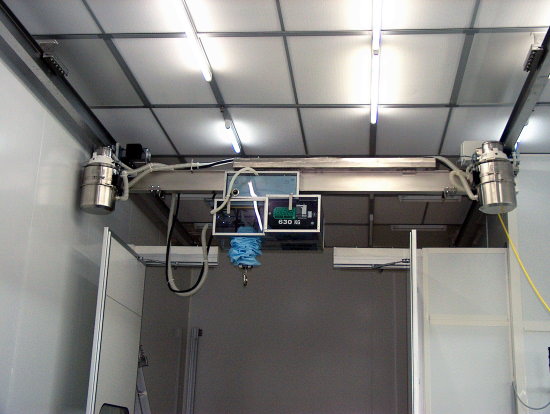

Clean room bridge
ISO 5 environment compatible
- Handling under specific conditions
- Precise and compatible transport in ISO 5 environment

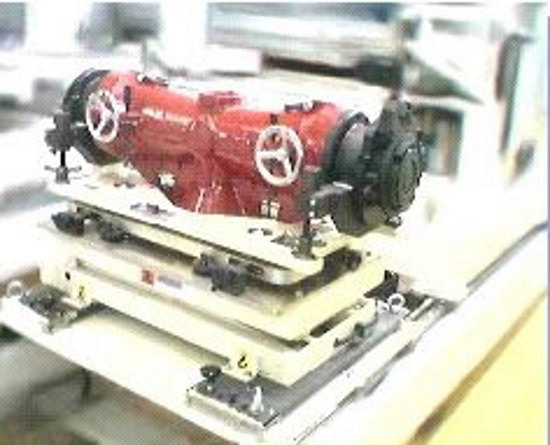

Transport fitting
- Handling equipment optimized in terms of mass and size
- Finite element calculation
- Certified by an approved body
- Option: according to need ISP SYSTEM supplied with fittings a periodic test bench, transport trolley
Automatic screw bench
Screwability of parts for the automotive industry
- 100% automatic control of the screwability of parts: automotive industry
- Control by servo-controlled and instrumented electrical screwing
- Equipped with a device allowing a soft mating of the screw in the thread
- Rate: 1.5s / piece
Power cycling bench
Power electronic components
- Simulate cyclic aging under power of electronic power components
- Components for engine control electronics in rail traction
- Equipped with a power module cooling circuit
- Equipped with an acquisition system: data necessary for the laboratories collected
Turbine on active magnetic bearings
Test bench
- High speed test bench
- High security
- Experimenting with the limits of active magnetic bearings: operating condition of a gas turbine
Mobile positioning system
High Dynamic
- Control of adjustments on turbine engine test benches
- Control via a communication bus
- Dimensions: 600 x 600 x 400 mm
Download datasheet
: Mobile positioning system
Bumps Pick & Place
Maintaining electronic components on power module
- Gripping by suction and depositing balls (up to 250)
- Precise positioning of small objects (± 0.02mm)
- Mass: ≤ 8 kg
Download datasheet
: Bumps Pick & Place
Automatic cleaning machine
- Parts cleaning by immersion in a solvent bath
- Useful cleaning volume: 665 x 700 x 100mm
- Structure: 304 L stainless steel
- Automatic container shutters to limit evaporation of the solvent
- Tempering and drying time, oscillation: configurable via HMI
Download datasheet
: Automatic cleaning machine
Brewing machine for solid chemicals
- Mixing chemicals in solid form (powders, granules, etc.)
- Equipped with a cylindrical tank rotated by variable speed motorization
- Reversible ventilation circuit with variable flow
- Temperature and humidity reading of the air inside the tank and the mixture
- Recording and viewing of these statements
Battery cell manufacturing machine
NI-Cd & LI – ION batteries
- Several machines are developed, with different functions:
- Spiraling
- Element calibration
- Li-Ion coating
- Packing elements
- Cover fitting
Download datasheet
: Battery cell manufacturing machine
Insertor
Insert, position and orient an object in a vacuum enclosure
- Equipped with a 6-degree positioner of high precision
- Maximum mass of the object to insert: 2,5 kg
- Vacuum operation
- Electromagnetic and nuclear compatible hardening
Download datasheet
: Insertor
