Opto mechanics / Deformable mirror

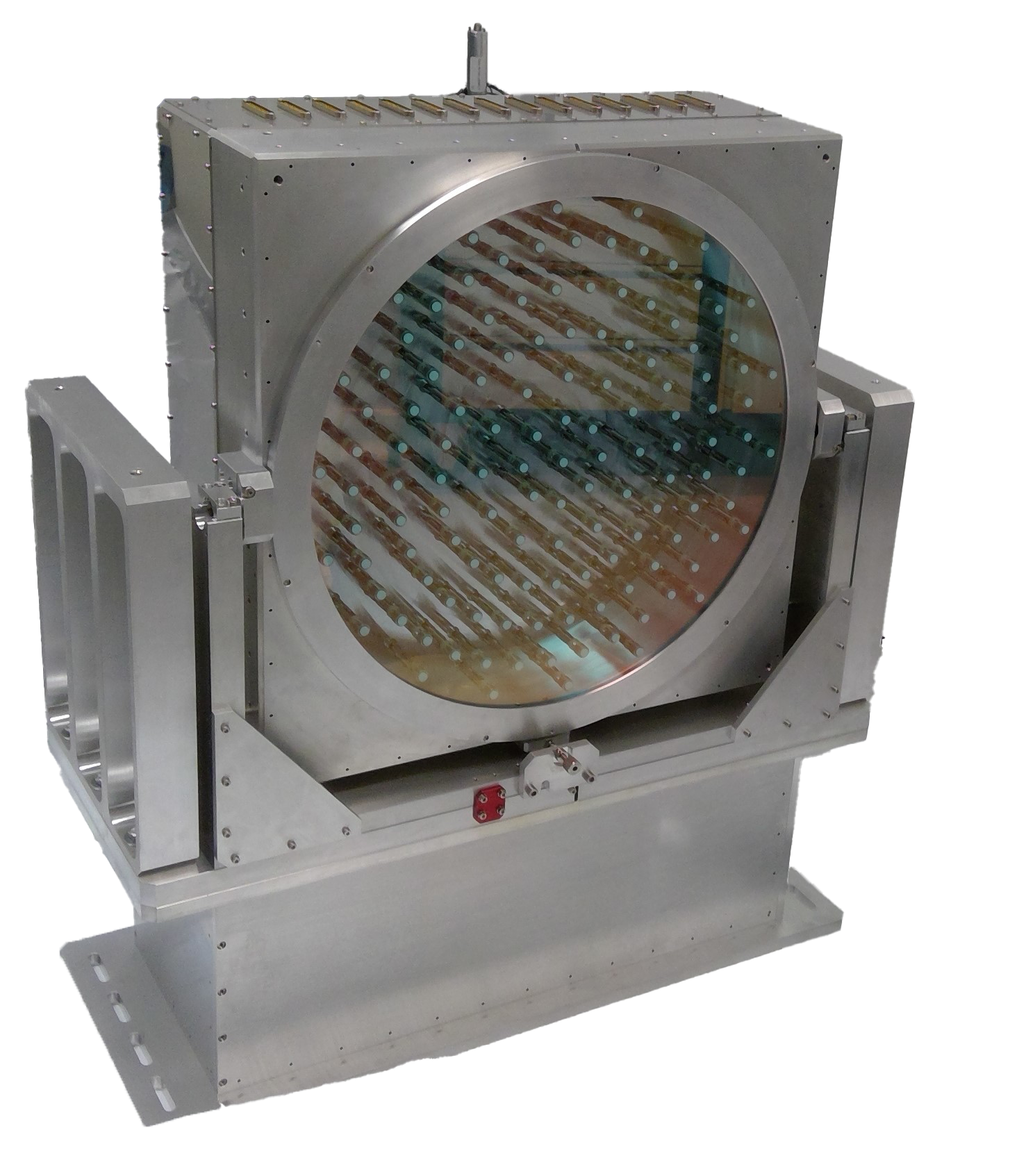

Miroir déformable MD400-C129

2PW Laser Deformable Mirror ∅400mm

Wavefront Correction
  • Original patented technology focused on the intense lasers requirments
  • Wavefront correction with nanometer precision
  • No grid effect on the laser beam
  • Interfaceable with any wavefront analyzer and wavefront correction software
  • Active aperture: Ø400mm
  • AOI<10°
  • Power: 2PW Laser
  • 129 actuators
  • Correction capability: up to 8 Zernike order
Download datasheet
: 2PW Laser Deformable Mirror ∅400mm
MD-controller

MD Controller

Multi-axis controller
  • Controls up to 54 stepper motors for the Deformable Mirror
  • Power supply: 115VAC-230VAC / 50-60Hz
  • Power consumption (max.): 8A/230VAC - 16A/115VAC
  • Deformable Mirror connectors: 6x D-SUB-37 female sockets
  • Storage temperature: -20°C to +70°C
  • Protection class: IP20
Download datasheet
: MD Controller

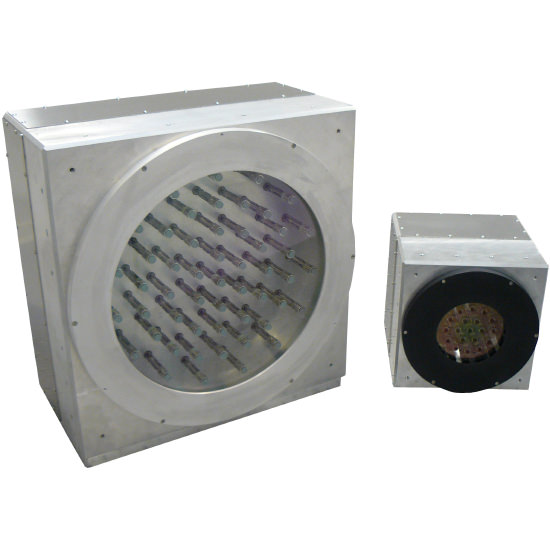

Deformable mirror

MD-AME
  • Original patented technology focused on the needs of laser technicians
  • Wavefront correction with nanometric precision
  • No grid effect on the laser beam
  • Very good linearity (> 99%)
  • Wide range of sizes from Ø22 to Ø800mm
  • Control rack included
  • Complete adaptive optics loop available via the LASQUA consortium
  • Interfaces with any wavefront analyzer and wavefront correction software
Download datasheet
: Deformable mirror

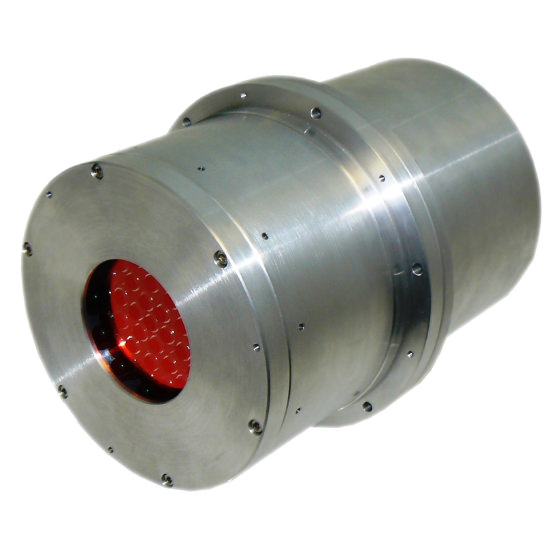

Cooled deformable mirror

High power active optic
  • Patented technology
  • Developed in collaboration with Imagine Optic
  • Equipped with a Micrometric Effort Actuator (AME) network: 47 actuators
  • Mirror polishing faults and aberrations corrected by micro force actuators
  • No grid effect on the laser beam
  • Hysteresis lower than with piezo actuators (0.1% instead of 10%)
  • Long term stability
  • Control rack included
Download datasheet
: Cooled deformable mirror

Space deformable mirror

MD-AME Space
  • Wavefront corrections for space applications
  • Improves the quality of space telescope imagery
  • Low hysteresis
  • Very low energy consumption
Download datasheet
: Space deformable mirror

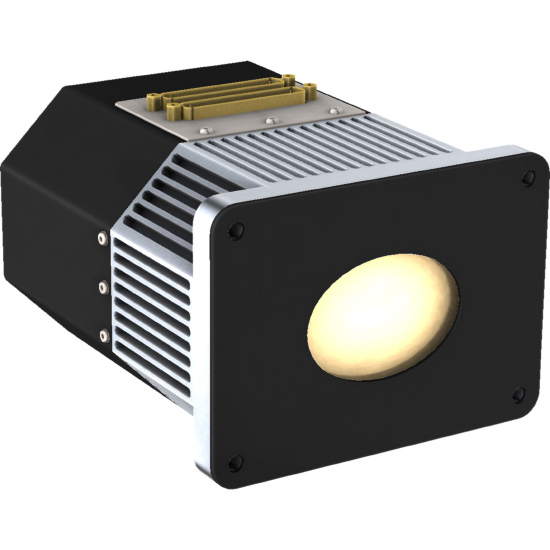

Deformable mirror MD-AME-IR

Infrared laser applications
  • Improves laser beam quality through wave front correction
  • No print-through effect on the optical surface
  • Excellent linearity (<99%)
  • Low hysteresis (<0,1%)
  • High stability excluding energy
  • High long-term stability unpowered
  • Suitable for high average power laser up-to 2,5 kW
  • Control rack included
Download datasheet
: Deformable mirror MD-AME-IR

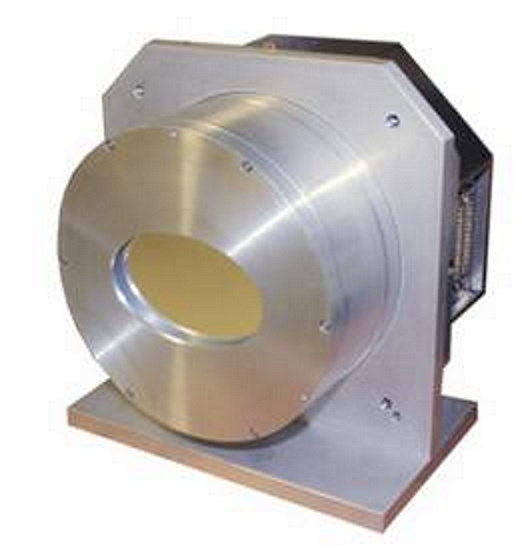

Deformable mirror ILAO

Intensive Laser Adaptive Optics
  • Patented technology
  • Developed in collaboration with Imagine Optic
  • Equipped with a Micrometric Effort Actuator (AME) network: 37 or 52 actuators
  • Hysteresis lower than with piezo actuators (0.1% instead of 10%)
  • Uniform distribution of forces on the contact surface
  • No friction or fingerprint effects on the mirror
  • Long term stability
  • Available in several models, several sizes, etc.
Download datasheet
: Deformable mirror ILAO

All our products
