Electric embedded actuators

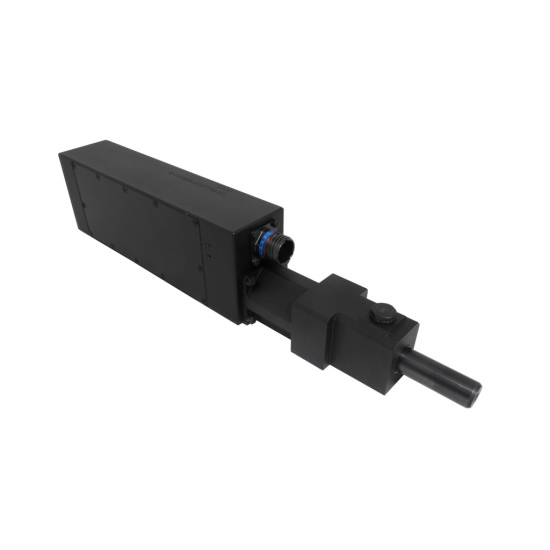

Embedded actuator VMR HV 50-300
CANopen compact high speed actuator
- Thrust or high speed traction
- CANopen communication
- Stroke: up to 300mm
- Force: up to 650N
- Mass: 3kg
Download datasheet
: Embedded actuator VMR HV 50-300

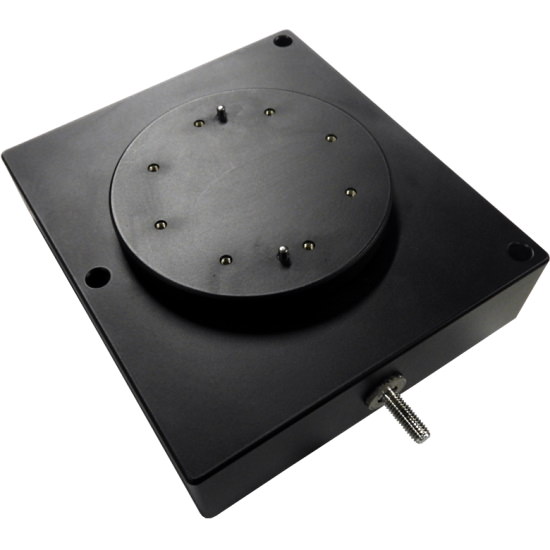

Motorized rotation stage actuator
Defense embedded actuator
- Force: 30 N
- Speed: 9 rotation/min
- Travel: +/-33°
- Power supply: 28 VDC
- Embedded electronics
- Operating temperature: -32°C to +49°C
- Sealing: IP65-9k
Download datasheet
: Motorized rotation stage actuator

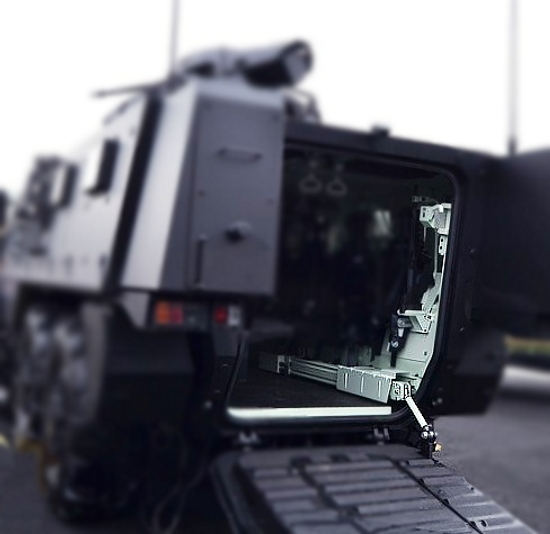

Motorization rear ramp armored vehicle
Locking armored door actuator
- Force: 10 000N / 500daN
- Travel: 600mm / 20mm
- Speed: 100mm/s / 7mm/s
- Power supply: 28VCC / 24V
- Operating temperature: -32°C to +50°C
- Integrated board
Download datasheet
: Motorization rear ramp armored vehicle
High efficiency electrical actuator
Electromechanical energy recovery cylinder 17000N
- Force: up to 17 000N
- Travel range: up to 600mm
- Speed: up to 62mm/s
- Power supply: 24VDC
- Operating temperature: -32°C to +55°C
- IP 65, Salt spray resistance, EMC
- Safety declutching lever
- Door opening assistance
- Options: High accuracy, encoder…
Download datasheet
: High efficiency electrical actuator

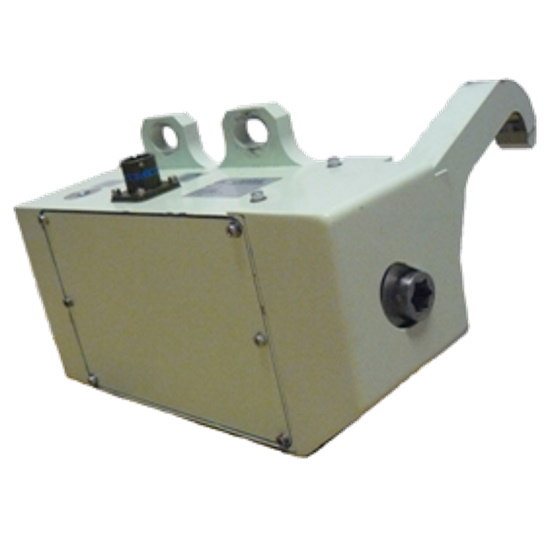

Lock actuator
For armored vehicle rear door
- Fast locking and unlocking
- Draw-hook tractive effort 250 daN
- Sealing IP65-9k
- Operating temperature -32°C /+50°C
- Serial production
Download datasheet
: Lock actuator

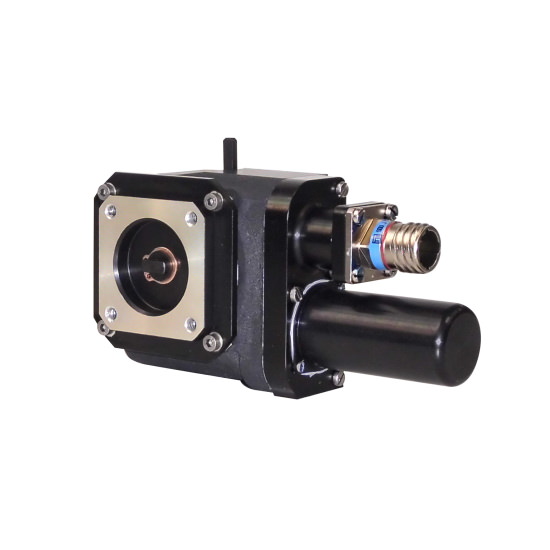

Rotary electric actuator
Open and close of the valve
- Open/Close of the valve (for air conditioning system)
- Wide Angle 45° or 90°
- Industrialization and series
- Production series (up to 1500 units / year)
Download datasheet
: Rotary electric actuator

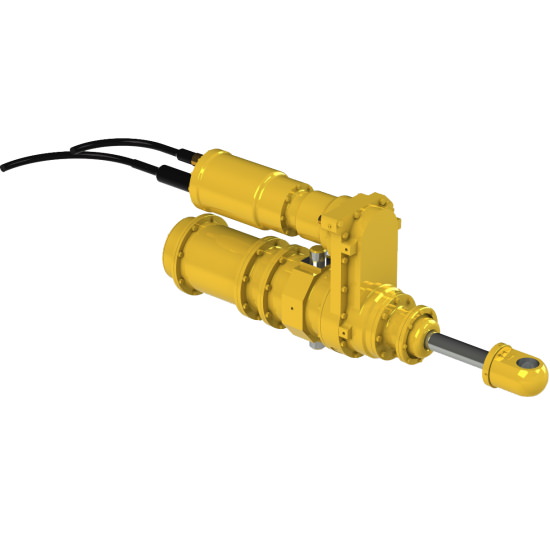

Immersed heavy duty linear actuator
Naval and defense actuator
- Force: up to 200 kN
- Travel: 200 mm
- Velocity: 30 mm/s
- Power supply: 400 VDC
- Down to 500 m depth
Download datasheet
: Immersed heavy duty linear actuator

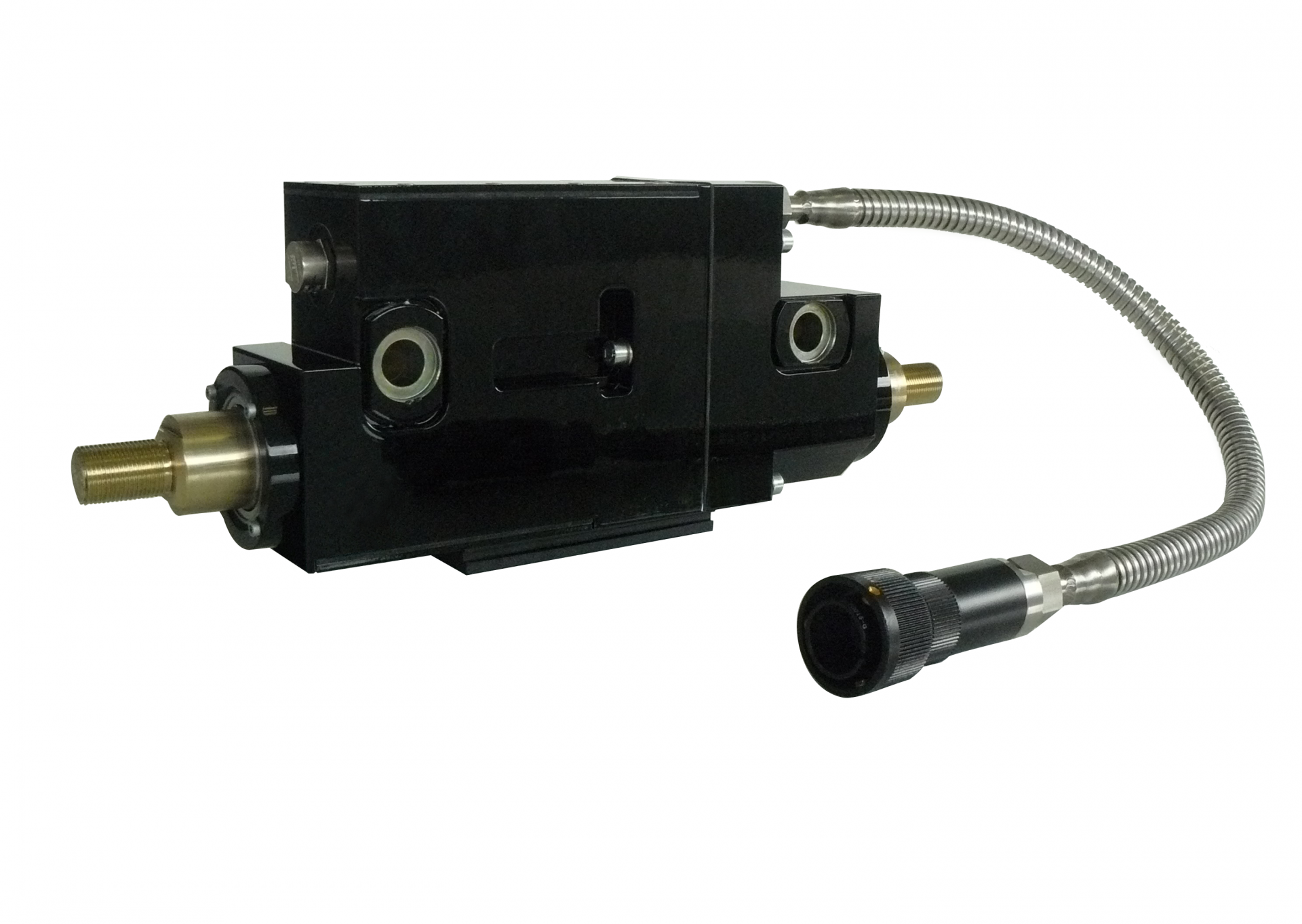

Safety electric actuator
Linear actuator for Railways
- Very High static load (thrust force: 5000 N)
- Embedded control electronic card
- Harsh conditions « under vehicle » from (-25°C à +55°C), Sealed to immersion, Salt spray resistance, Chock resistant
- EMC Constraints
- Mass: 8Kg
Download datasheet
: Safety electric actuator

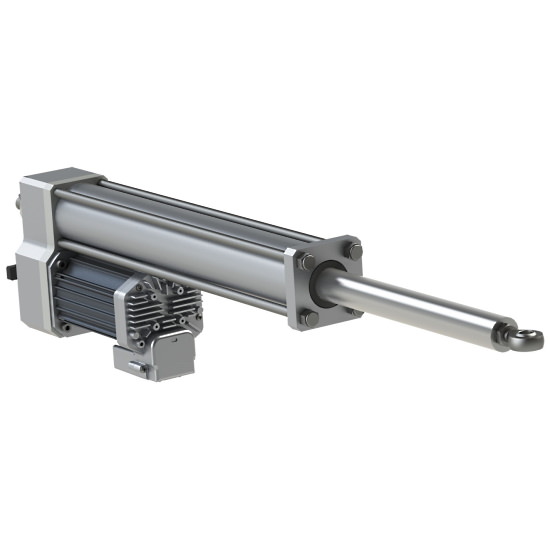

Declutching electric actuator
For use in manual mode
- Force: up to 7 000N
- Travel range: up to 250mm
- Speed: up to 62mm/s
- Power supply: 24 VDC
- Operating temperature: -32°C to +60°C
- IP 65, Salt spray resistance, EMC
- Safety declutching lever
- Door opening assistance
- Many options on request: angular encoder, energy recovery system,...
Download datasheet
: Declutching electric actuator

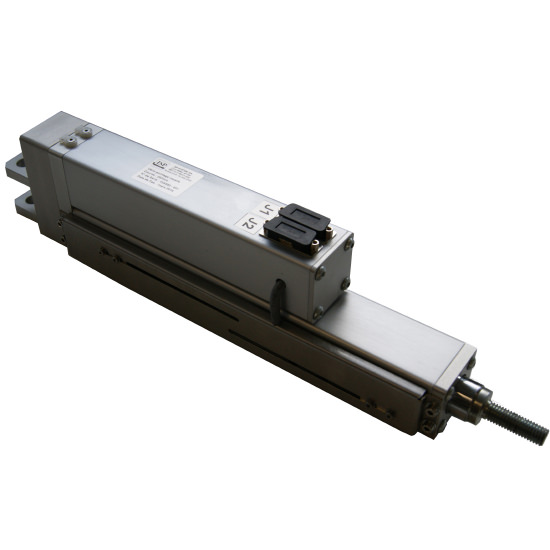

Electro-mechanical actuator
Harsh conditions
- Static force/maximum dynamic: 5000N/4000N
- Travel range: up to 700mm
- Translation speed: up to 70mm/s
- Power supply: network 24 VDC
- Working temperature: -40°C to +80°C (Option reheating -60°C to +80°C)
- Self-locking upper, very compact
- Options: Encoder, Energy recovery
Download datasheet
: Electro-mechanical actuator

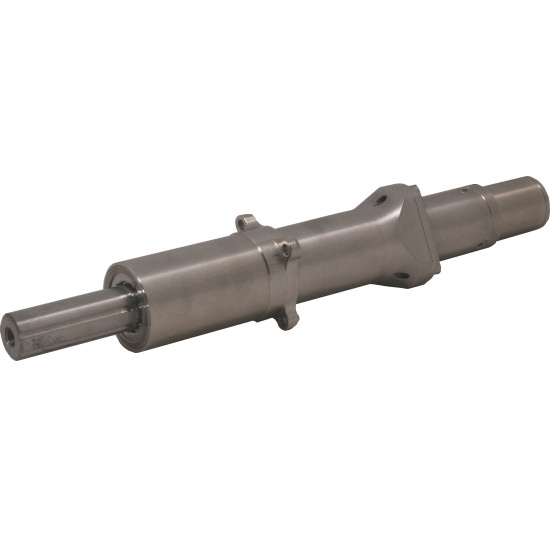

VMP 50-30 Space actuator
High accuracy in harsh environment
- Force: up to ±30N (high precision)
- Max velocity: 500 µm/s
- Temperature range: -60°C to +80°C
- Mass: < 250g
- Environment: space vacuum use
Download datasheet
: VMP 50-30 Space actuator

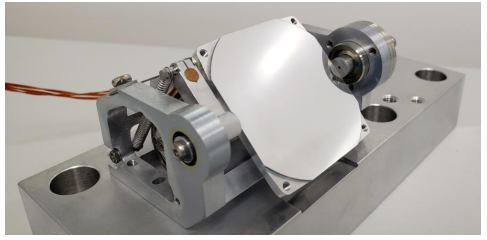

Micrometric positioning actuator
FIREBALL probe balloon
- Optimization of weight and bulk volume
- Accuracy and rigidity
- Main Constraints: UHV environment, Vibration during launch and extreme temperature
- Thermal stability
- Reliability

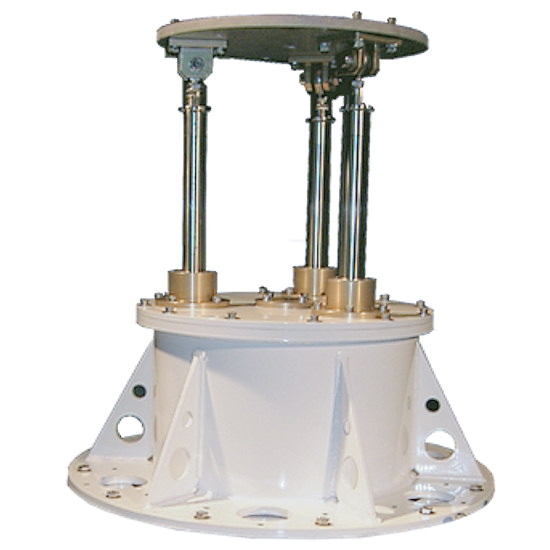

Mobile secondary reflector equipment
Naval radar
- Travel: 300mm
- Max velocity: 60mm/s
- Force: axial +/- 300daN and radial +/-25daN
- Marine environment
- Optimization of mass and size
- Strong EMC constraints (immunity and emission)

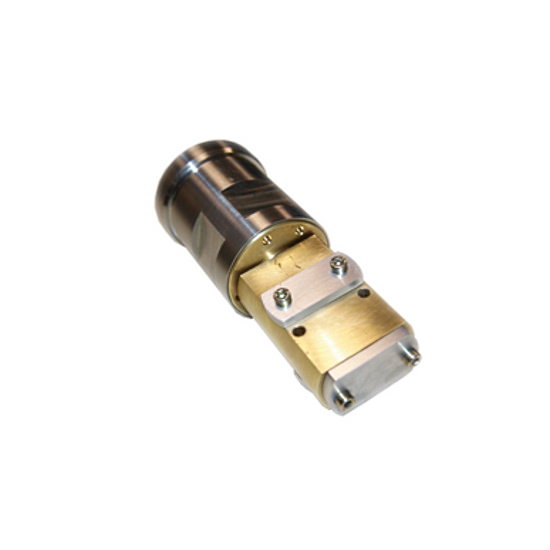

Fluid valve actuator
Coating for harsh environment
- Motorized pressure regulating valve
- Integrated electronic board on demand
- Position feedback by encoder
- Travel: 14mm
- Resolution: 3µm
Download datasheet
: Fluid valve actuator

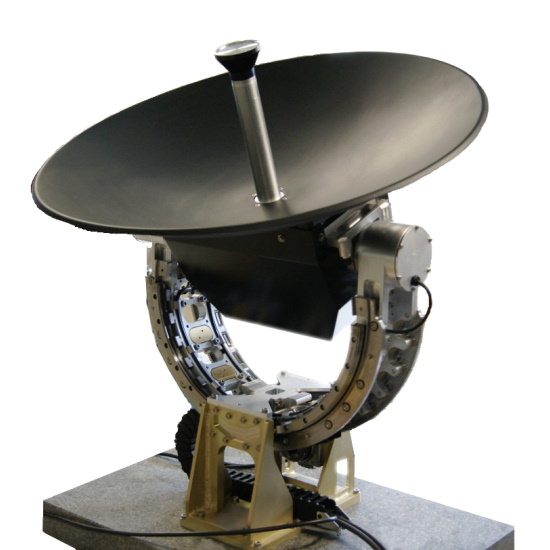

Satellite antenna positioner
Comsat antenna on drone
- Pointing accuracy
- Dynamic
- Optimized mass
- Design, prototype production, qualification & serial production (planned at 10 units / year)
Download datasheet
: Satellite antenna positioner
Actuator for active anti-vibration system
Attenuation of engine vibrations
- Attenuate the vibrations of motorizations of flying devices
- Mass: 1kg
- Travel: 50mm
- Travel speed: 1mm/s
- Vibration range: 70 to 350 Hz
VMR 160-300-R electrical positioner
Reversible DC electrical positioner
- Push or pull loads up to 300N
- The piston rod is equipped with an anti-rotation system
- Travel: 160mm
- Speed: 100 mm/s
Download datasheet
: VMR 160-300-R electrical positioner
VMP-60 Micro-positioning actuator
Space applications
- High axial and radial stiffness
- Thermo-mechanic stability
- Driven by stepper motor
- Compatible with particular environments: UHV, -80°C to + 60°C, CO² atmosphere, shocks, ...
- Travel: 60mm
- Résolution on displacement: 50nm / pas
Download datasheet
: VMP-60 Micro-positioning actuator

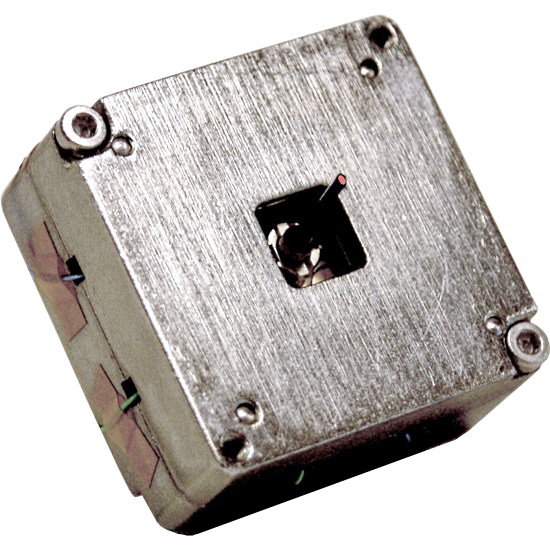

XY axis electromagnetic actuator
High frequency electromagnetic actuator
- Dimensions : very small
- Generate a high frequency displacement
- Controlling an object (optical fiber) in an XY plane
- Useful stroke: 1000µm x 1000µm
- Positioning accuracy: ± 10µm
- Mass: about 80g
Download datasheet
: XY axis electromagnetic actuator
