Precision frame

Mobile beam for special machine

Structure composite
  • Linear axis support
  • Matter: Aluminum
  • Dimension : 700mm x 300mm x 200mm
  • Best balance between lightness /stiffness & cost

Vacuum chamber

Multi-axis positioner Nanoscopium
  • 2 vacuum chambers
  • Inner Dimensions: 350 x 600 x370 mm& 450x 950 x490 mm
  • Equipped with 2 positioners with high accuracy (inside)
  • Positioner isolated from the chamber in order to dissociate the vibrations and thermal expansion

Vacuum chambers of PCNC

Soldered chambers
  • Chamber dimension: 8600 x 1600 x 3200 mm
  • Volume : 6m3
  • Internal pressure: 1.10-6 mbar
  • Leakage Rate: < 6.10-7 mbar.l/s
  • Manufacturing & control under CODAP V2000 cat B
Download datasheet
: Vacuum chambers of PCNC

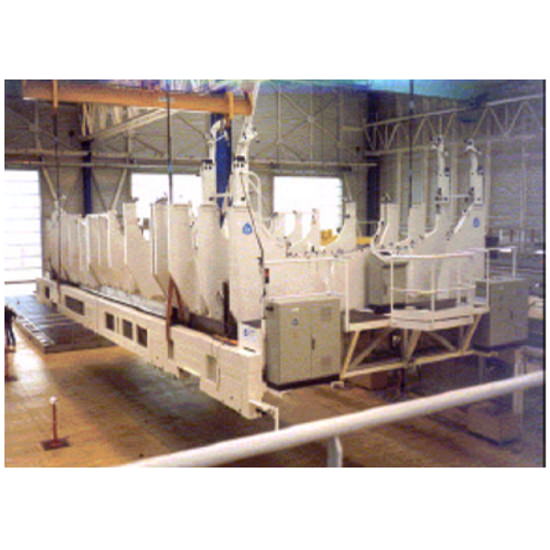

Assembly station belly fairing

Structure composite
  • Assembly of frame parts on a distance of 18m
  • Frame: precise, light & stable

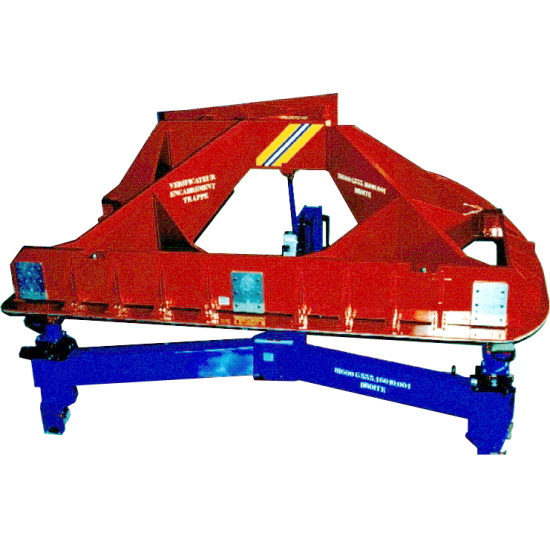

Hatch controller A340

Composite frame
  • Masters of the main hatch of the plane gear of more than 4m
  • Control the interface, slack and continuity of the airplane profile
  • Sets the operating device of the Hatch
  • Frame: precise, light & stable

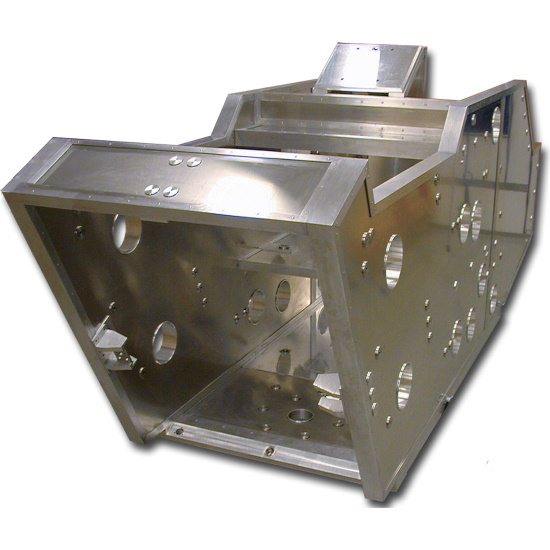

Opto-mechanical frame

Composite frame
  • Receipt of the optical components of the frequency conversion system of LIL Laser
  • Geometrical and dimensional manufacturing tolerance are 1/10 mm for a size of 4m
  • Light and Rigid
  • High thermo-mechanical stability

Radar antenna frame

Composite frame
  • Envelope of the radar antenna with electronic scanning
  • Dimension: up to 6m
  • Designed to support mechanical and harsh environment constraints
  • High accuracy Positioning of sensitive Equipment & high electromagnetic protection

Bathtubs tools

  • Adjustment of a structural element of the A380 sails
  • Target positioning accuracy: ± 0.05mm
  • Low weight: can be installed on the plane by a single operator
  • Rigid and stable
  • Very good maintenance of metrological performance over time
