Micro-nano positioning
AEMDF 1000-5000 actuator
Micrometric electromagnetic actuator
- 2010 "Micron d’or" Laureate
- Generates high precision force or displacement controlled by dynamics
- Linear electromagnetic motor
- Guidance by deformable link: no parasitic friction, high precision and repeatability, no maintenance
- Compact
- Stroke: up to 2mm
- Effort: + 5N to -5N
- Accuracy in displacement: 2µm
Download datasheet
: AEMDF 1000-5000 actuator
µVMP35-100-60 positioner
Miniature positioner
- Small footprint
- Irreversible displacement
- Rod anti-rotation system
- Piloting in speed regulation
- Pushing force: up to 60N
- Resolution : 100nm
- Stroke: 35mm
- Mass: 250g
Download datasheet
: µVMP35-100-60 positioner
AEB 75 V1 actuator
Bistable Electromagnetic Actuator
- Provides 2 stable positions at high frequencies
- Design based on the use of two electromagnets
- Rectangular signal transformation in one movement thanks to the control electronics
- Possible use of different tools on the mobile part as needed
- Travel time: 3ms
- Minimum hold time 10ms
Download datasheet
: AEB 75 V1 actuator
VMR 160-300-R positioner
Reversible DC electrical positioner
- Pushes and pulls loads up to 300N
- Rod fitted with anti-rotation system
- Stroke: 160 mm
- Speed: 100 mm/s
Download datasheet
: VMR 160-300-R positioner
VMR 65-1000-HT servo positioner
High temperature and high dynamic
- High load control with speed and precision
- Motorization in severe environment
- Bidirectional forces up to 1000N at 40mm / s
- Stroke: 65 mm
Download datasheet
: VMR 65-1000-HT servo positioner
VMP 29-50-3800 actuator
Micro-positioning actuator
- Hybrid stepper motor
- Rod anti-rotation system
- Irreversible displacement
- Compatibility clean environment (10 to 10 000) and empty (10-6mbar)
- Stroke: 29mm
- Resolution : 0.05µm / step motor
Download datasheet
: VMP 29-50-3800 actuator
VMP for scientific probe balloon
Vacuum and extreme temperature compatible
- Optical linear encoder with 50nm resolution
- Speed: > 12mm/s
- Stroke: 60mm
- Axial load: 10 à 50N without end-play
- Operation from -60°C to + 60°C without heating or cooling with integration of temperature probe & heating resistance
Download datasheet
: VMP for scientific probe balloon
VMP 30-50-100 positioner
Micro-positioning
- Hybrid stepper motor
- Irreversible displacement
- Rod anti-rotation system
- Precise, light, robust, compact and rigid
- Stroke: up to 35mm
- Resolution : 5µm = 49 step/motor
Download datasheet
: VMP 30-50-100 positioner

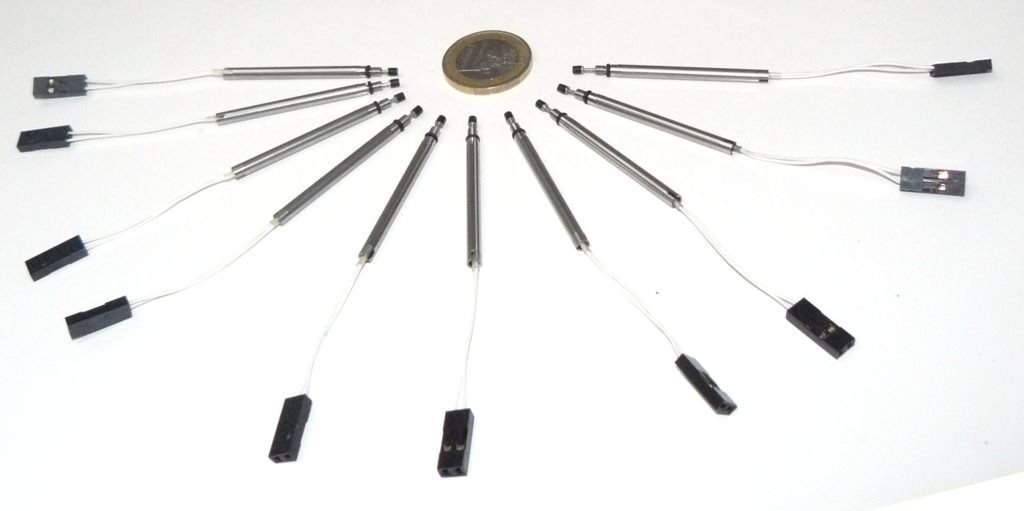

AEHF actuator
Electromagnetic and high frequency actuator
- HF linear actuator, valve opening / closing, force injection, etc.
- Very small dimension
- High frequency movement
- Dispensing head and control electronics supplied on request
- Stroke: 150µm
- Maximum frequency: 1000 Hz
- Compatible with harsh environments: air humidity, shocks, vibrations, dust
VMP 30-30-300 positioner
Micro-positioning
- Rod anti-rotation system
- Step by step gearmotor
- Irreversible displacement
- Stroke: 30mm
- Resolution: 55nm / step moteur
- ISO 5
Download datasheet
: VMP 30-30-300 positioner
VMP 40-6000-80 positioner
Micro-positioning
- Hybrid stepper motor
- Irreversible translational movement
- Rod anti-rotation system
- Max stroke: <35.75 mm
- Resolution : 6.25µm/step motor
- ISO 5
- Available in LMJ version
Download datasheet
: VMP 40-6000-80 positioner
